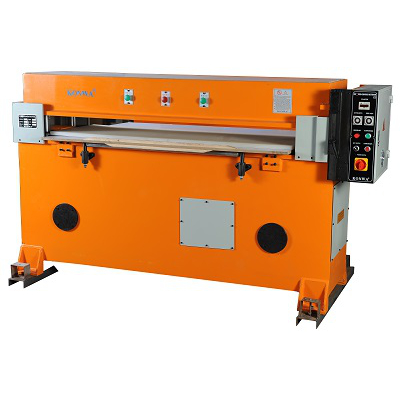

KW-TS Series: Precision 4-Column Hydraulic Plane Cutting Machine
KW-TS Series: Precision 4-Column Hydraulic Plane Cutting Machine - Image 2

Features:
Double balance is performed at the four corners of the machine using 4 guide posts and dual flexible arms so that the balance is
accurate and the pressure in the middle of the working table is the same as that of the edges.
All sliding parts are lubricated with oils supplied by the hydraulic system so that the service life of the machine is prolonged.
External oil pump, motor and electrical box allow for better ventilation and cooling condition thus pro-longing service life.
The pressing board of cutting carries out slow cutting when it comes into contact with the die cutter. This ensures that there is no size error between the uppermost layer and the lowermost layer of cut materials.
The central automatic oil lubricating system guarantees machine precision and prolongs service life of machine.

SKU: KW-TS Category:
Konwa
  • Previous Product
  • KW-TP25/TP30 Hydraulic Traveling Head Cutting Machine
  • Next Product
  • KW-TE10/25 Hydraulic Swing Arm Cutting Machine

Description



Model KW-TS30 KW-TS40 KW-TS50 KW-TS60 KW-TS80 KW-TS100 KW-TS150
Max. Cutting Power (tons) 30 40 50 60 80 100 150
Distance Between Beam and Cutting Table (mm) 50-150 50 – 200 50 – 200 50 – 200 50 – 200 50 – 200 50 – 200
Cutting Area (mm) 1600 x 550 1600 x 610 / 1400 x 800 1600 x 800 / 1400 x 800 1600 x 900 / 1400 x 900 1600 x 900 / 1400 x 900 1600 x 900 / 1400 x 900 1600 x 1000 / 1400 x 1000
Motor Power (kW) 2 4 5.5 7.5 10 10 14.5
Power Supply 415V, 50Hz 415V, 50Hz 415V, 50Hz 415V, 50Hz 415V, 50Hz 415V, 50Hz 415V, 50Hz
Machine Weight (kg) 1700 2300/2000 3800 / 3600 4800 / 4600 6300 / 6100 7800 / 7600 10000 / 9500

Brand

Konwa
